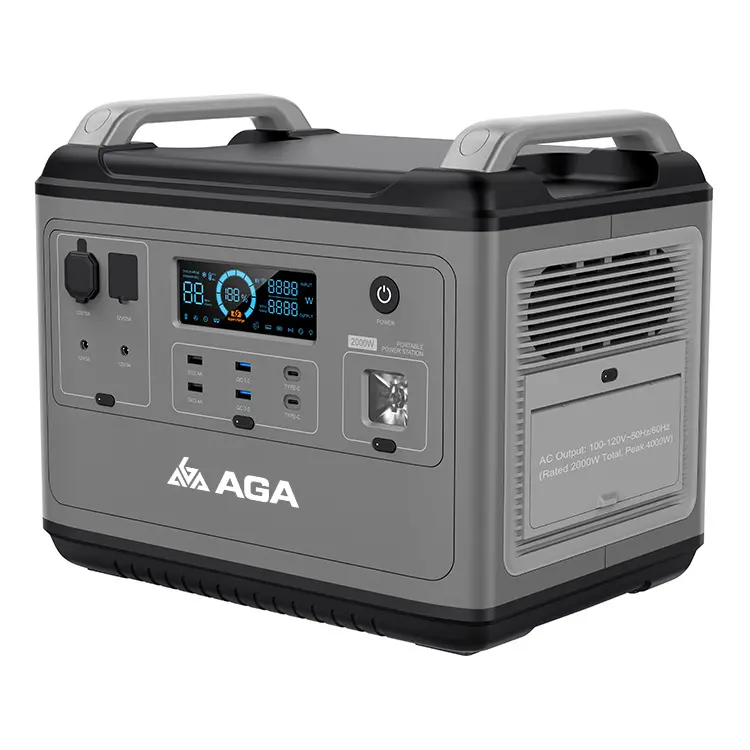

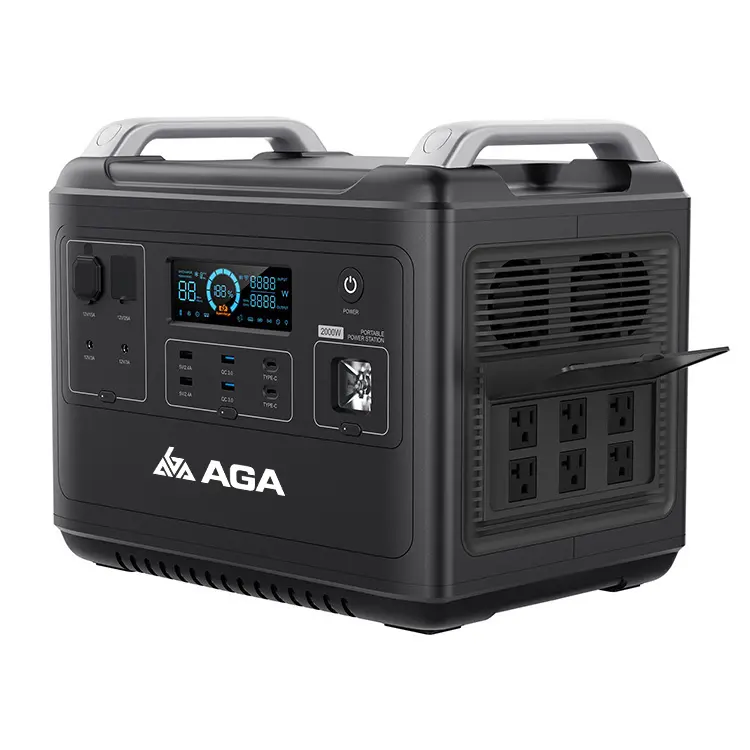

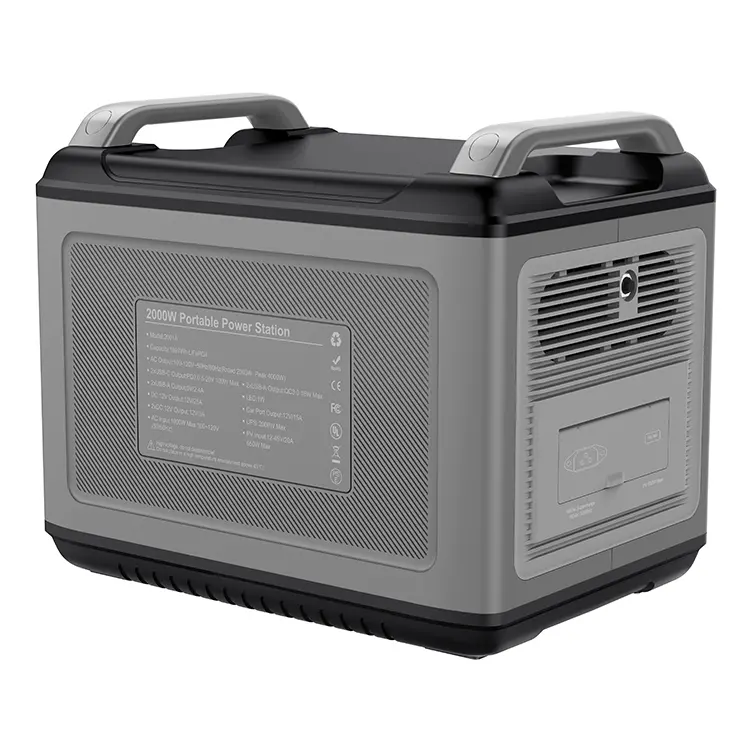

| Model：AGA-2001A | ||
| Battery Type | LiFePO4 battery | |
| Capacity | 1997Wh (51.2V /39.1Ah) | |

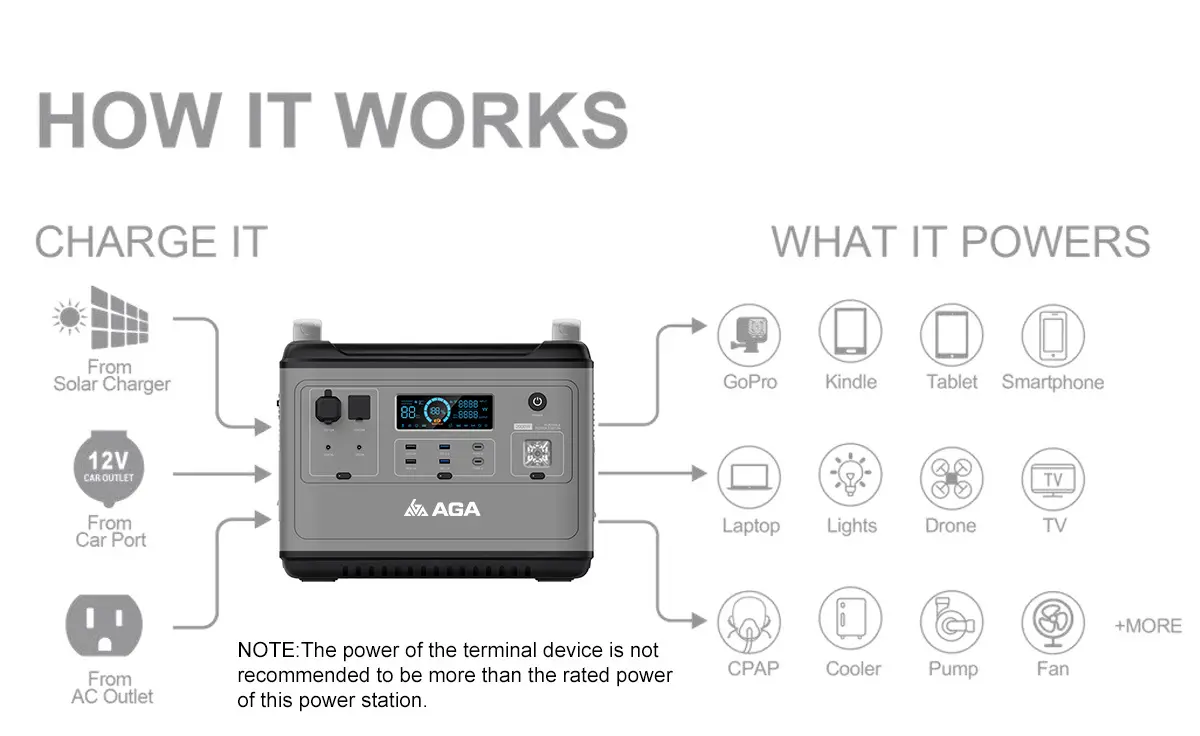

| Charging | AC Input | 1100W |
| AC Port Charging Time | 2.2 hrs ,super fast charging (90V-130V Wall Outlet) |
|
| AC Charing + Adapter | 1.4 ~ 1.8 hrs | |
| Solar Panel connector | Anderson Port, MPPT MAX 500W | |
| Solar Charging | 4 hours | |
| Car Charging | 12V/8A, 24V/10A, 48V/15A | |
| Input Voltage Range | 12V-50V | |
| Input Voltage protective | 48V-53V | |
| Same time charge and discharge | SUPPORT | |
| AC Output | Rated Power | 2000W , (UPS 1100W) |
| Surge Power | 4000W | |
| Output Wave | Pure Sine Wave | |
| Output Voltage | 110V-240V | |
| Over Load | 2100W≤load＜3000W@2min; 3000W≤load 4000W @5s; 4000W≤load @0.5s |
|
| Rated Frequency | 50Hz/60Hz | |
| Inverter efficiency | η=88% | |
| Depth of Discharge (DOD) | 92% | |

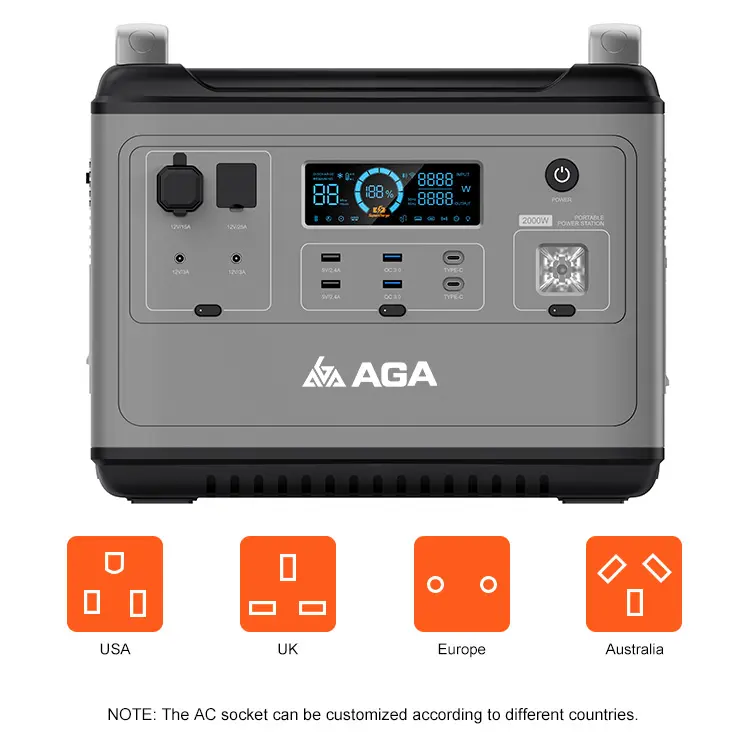

| AC Output | 6* AC 2000W | |
| DC Output | XT60 Port | 1* Anderson 12V/10A (maximum 25A output on both ports) |
| USB-A Output | 2* (5V/2.4A) | |
| USB-A QC3.0-18W | 2* 5V/3A ; 9V/2A; 12V/1.5A | |
| Type-C, PD100W | 2* 5V3A ;9V3A;12V3A;15V3A;20V5A | |
| DC5521 | 2* 12V3A | |
| Cigar lighter Port | 1* 12V/10A | |
| LED Lighting | Power 1W, warm tone, single lamp with lamp cup |
|
| Operating Condition | Start Time Management System | ＜10mS BMS Management |
| Charging Temperature | 0-40 ℃ /32-104℉ | |
| Discharging Temperature | below 10-40 ℃ /-4-104℉ | |
| Humidity | 5%-95% | |
| Fire rating | V0 | |
| Shell material | PC+ABS | |
| Protection | Short-circuit, Over-current, Over-voltage, Low-voltage, Over-load, Over-temperature ,Over-charge | |
| Weight [kg] | About 22KG | |
| Size | (L/W/H) 392*279*323mm | |
| Certification | BSCI ISO9001 CE FCC UL2743 MSDS UN38.3 | |

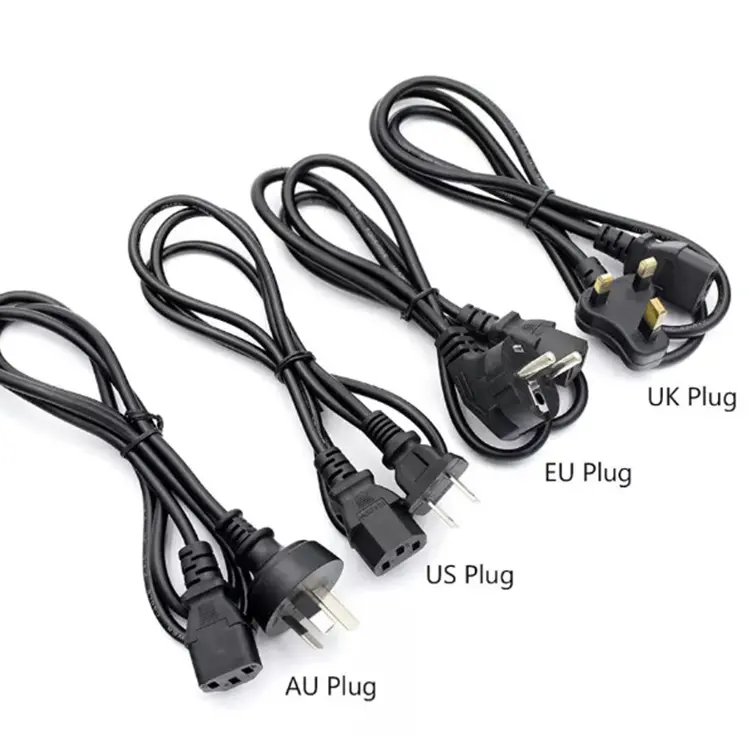

| Accessories | AC Cable Product Manual |
|
