| Model：AGSPPS1200F | ||
| Battery Type | LiFePO4 battery | |
| Capacity | 960Wh (48V/20Ah) | |
| Charging | AC Input | 700W |
| Solar Panel connector | Anderson Port, MPPT MAX 500W | |
| Car Charging | 15V/8A | |
| Input Voltage Range | 11.5V-48V | |
| Input Voltage protective | 48V-53V | |
| Same time charge and discharge | SUPPORT | |
| AC Output | Rated Power | 1200W |
| Surge Power | 2400W | |
| Output Wave | Pure Sine Wave | |
| Output Voltage | 110V-240V | |
| Over Load | 1365W≤load＜1950W@2min; 1950W≤load 2600W @5s; 2600W≤load @1s |
|
| Rated Frequency | 50Hz/60Hz | |
| Inverter efficiency | η=88% | |
| Depth of Discharge (DOD) | 90% | |
| AC Output | 6* AC 2000W | |
| USB-A Output | 2* (5V/2.4A) | |
| USB-C 20W | 3* 5V/3A ; 9V/2.22A; 12V/1.67A | |
| Type-C, PD100W | 1* 5V3A ;9V3A;12V3A;15V3A;20V5A | |
| DC5521 | 2* 12V3A | |
| Cigar lighter Port | 1* 12V/10A | |
| LED Lighting | Power 1W, warm tone, single lamp with lamp cup |
|
| Operating Condition | Start Time Management System | ＜10mS BMS Management |
| Charging Temperature | 0-40 ℃ /32-104℉ | |
| Discharging Temperature | below 10-40 ℃ /-4-104℉ | |
| Humidity | 5%-95% | |
| Fire rating | V0 | |
| Shell material | PC+ABS | |
| Protection | Short-circuit, Over-current, Over-voltage, Low-voltage, Over-load, Over-temperature ,Over-charge | |
| Weight [kg] | About13.5KG | |
| Size | (L/W/H) 387*228*316mm | |
| Certification | BSCI ISO9001 CE FCC UL2743 MSDS UN38.3 | |

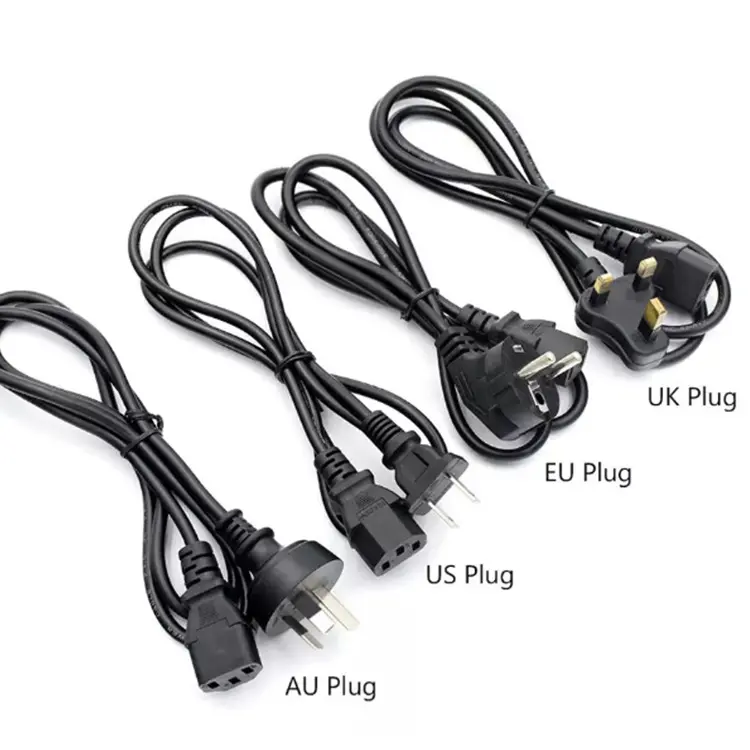

| Accessories | AC Cable Product Manual |
|
